High Discharge 10ah 20ah Lithium LiFePO4 Prismatic Battery Cell Product Features
1. High Discharge Rate
The 20Ah lifepo4 prismatic battery cell has a maximum continuous discharge current of 2C. The 10Ah lifepo4 prismatic battery cell has a maximum continuous discharge current of 5C, with even higher peak discharge rates. This allows for rapid power response, meeting the high power demands of equipment during startup, acceleration, and hill climbing.
2. Safety
The battery utilizes lithium iron phosphate (LFP) battery material, which offers exceptional thermal stability.
3. High Charge Rate
Supports high-rate charging, with a maximum continuous charge current of 4C for the 10Ah cell, reducing charging time.
4. Compact Size
The lifepo4 prismatic battery cell’s compact size provides significant flexibility in device design and enhances product portability.
5. Applications
Commonly used in products requiring both high charge rate and portability, such as power tools, starting power supplies, electric scooters, self-balancing scooters, and transport robots.
6. Terminals
M6 stud terminals are used for the positive and negative poles of the battery cell, which are easy to install and remove.

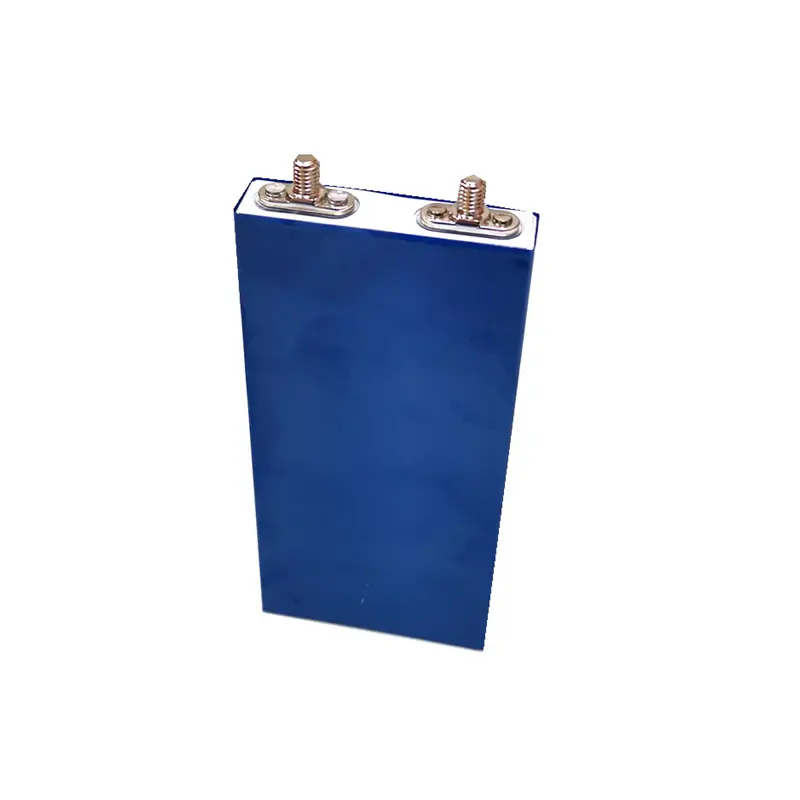

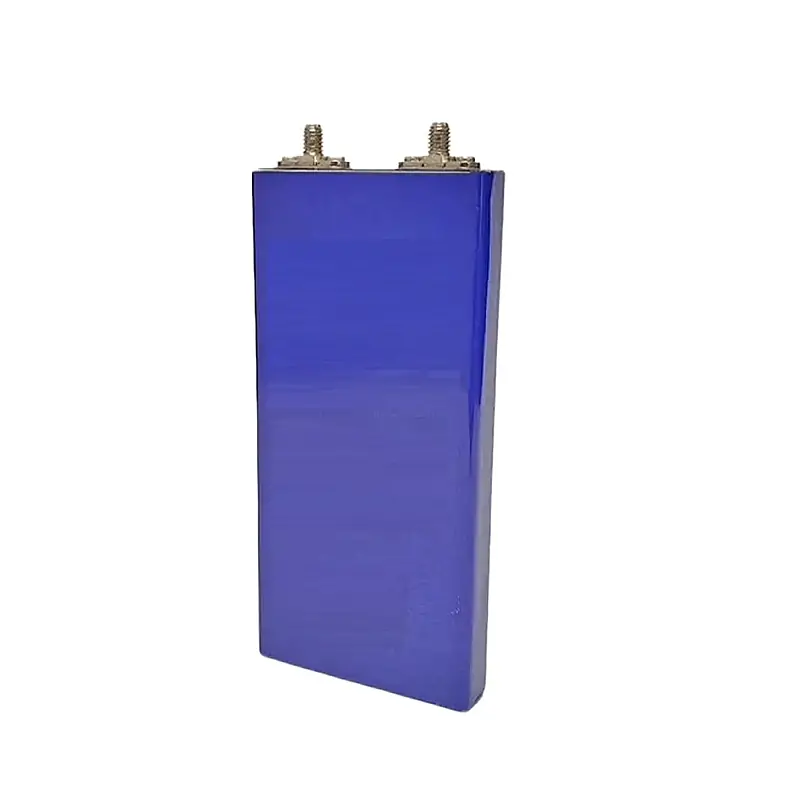

High Discharge 10ah Lithium LiFePO4 Prismatic Battery Cell Datasheet
Nominal Capacity: 10Ah
Nominal Voltage: 3.2v
Energy: 32Wh
Weight: <276g
Internal Impedance: ≤6.0mΩ
End of Charge Voltage: 3.65V±0.05V
Std. Charge Current: 10A/1C
Std. Discharge Current: 10A/1C
Max. Continuous Charge Current: 40A/4C
Max. Continuous Discharge Current: 50A/5C
Max. Pulse Discharge Current(15s):80A/8C
Discharge cut-off Voltage: 2.5v
Operating Temperature: 0~45℃ (Charging)/-20~45℃ (Discharging)
Dimension(W*H*T): 65±1 mm* 150±1mm(includes M6 stud terminal)* 15±1mm
Positive and Negative Terminals: M6 stud

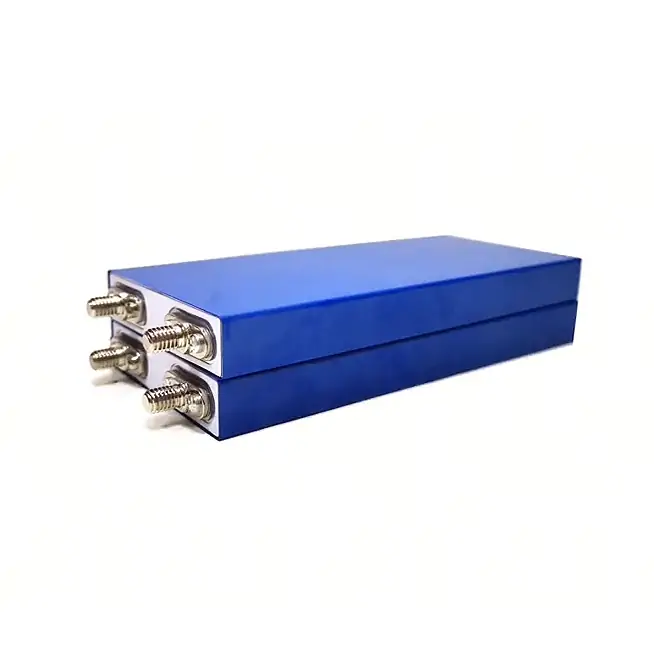

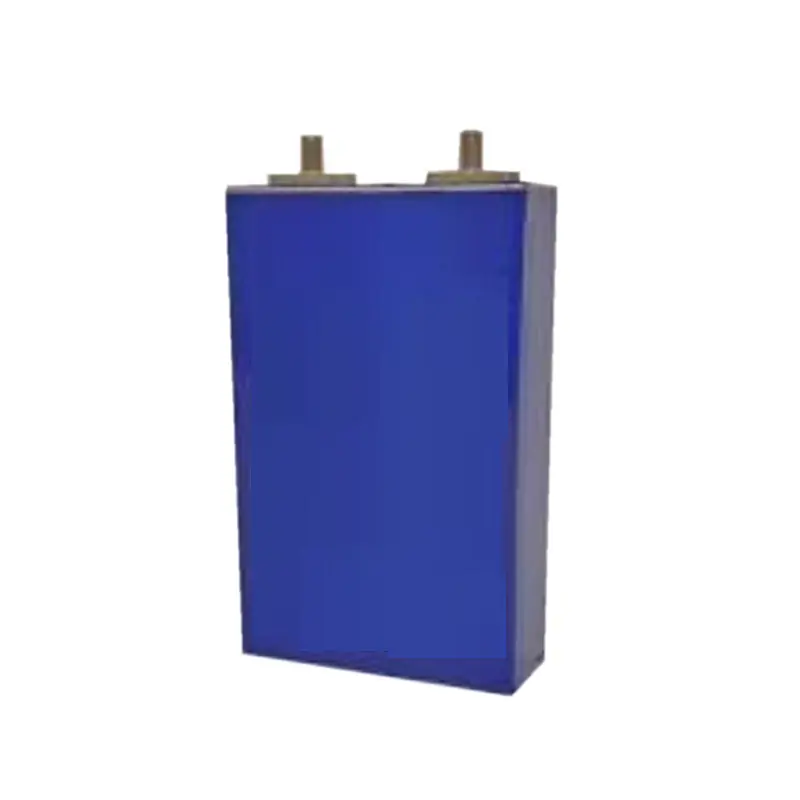

High Discharge 20ah Lithium LiFePO4 Prismatic Battery Cell Datasheet
Nominal Capacity: 20Ah
Nominal Voltage: 3.2v
Energy: 64Wh
Weight: <510g
Internal Impedance: ≤6.0mΩ
End of Charge Voltage: 3.65V±0.05V
Std. Charge Current: 10A/0.5C
Std. Discharge Current: 10A/0.5C
Max. Continuous Charge Current: 20A/1C
Max. Continuous Discharge Current: 40A/2C
Max. Pulse Discharge Current(15s):60A/3C
Discharge cut-off Voltage: 2.5v
Operating Temperature: 0~45℃ (Charging)/-20~45℃ (Discharging)
Dimension(W*H*T): 65±1 mm* 150±1mm(includes M6 stud terminal)* 15±1mm
Positive and Negative Terminals: M6 stud
If you need other 10-30 Ah high discharge rate lithium LiFePO4 prismatic battery cells, please contact us.
