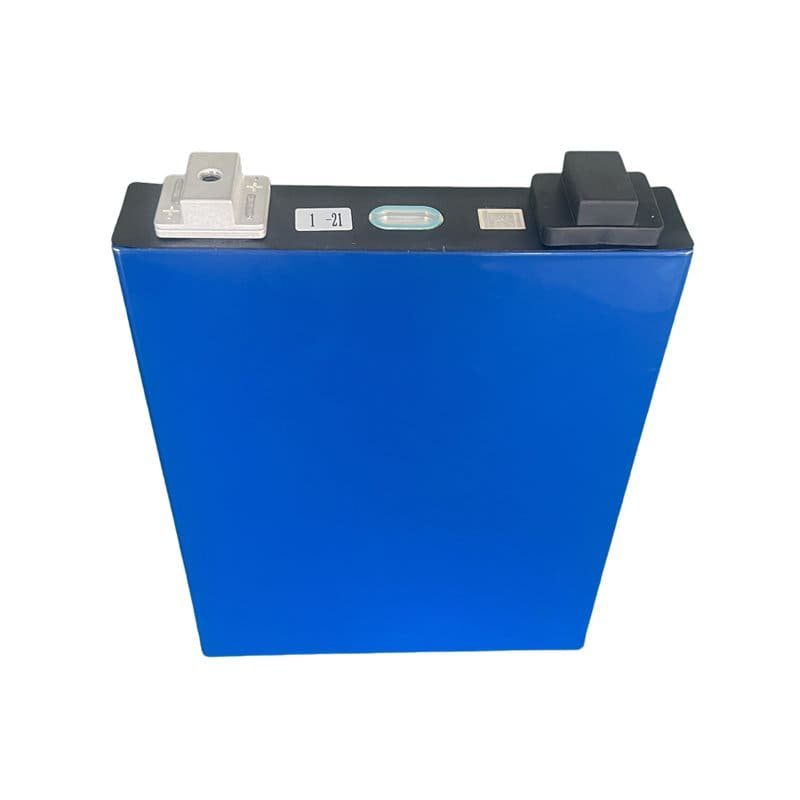

CALB L173F163 3.2v 163ah LiFePO4 prismatic battery cell
Brand new, Grade A CALB L173F163 3.2v 163ah LiFePO4 prismatic battery cell. Long cycle life, high energy density. Passed CE, UL, MSDS,UN38.3 and various safety tests. Suitable for Mini EV, Electric Vehicle, Electic Bus, Golf cart, Forklift, UPS, yacht, AGV (Automated Guided Vehicle), RV( Recreational Vehicle), Energy storage system(ESS) etc.
CALB L173F163 3.2v 163ah LiFePO4 prismatic battery cell Datasheet
Battery Model: L173F163
Nominal Voltage: 3.2v
Rated Capacity: 163Ah
Rated Energy: 521.6Wh
Work Voltage: 2.5~3.65V
Internal Resistance(Ac. 1kHz): 0.2~0.5mΩ
Weight: 3.19±0.15kg
Cyele Life: ≥4000times
Shell Material: Aluminium
L173F125(flat top) Dimension: 174.4±0.15*220±0.3*36.4±0.15mm
L173F125B Dimension: 174.4±0.15*230.5±0.6*36.4±0.15mm
Standard Charging Model: At room temperature, charged to 3.65V at a constant current of 163A, and then, changed continuously with constant voltage of 3.65V until the current was not more than 5±0.5A.
Standard Charging Temperatur: 25±2℃
Absolute Charging Temperature: -5~60℃(No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.)
Absolute Charging Voltage: Maximum 3.8V(No matter what the charging model is, including pulse charging, once the voltage of the cell is above the absolute charging voltage, charging should be stopped.)
Standard Discharging Model: At room temperature, discharge to 2.5V at a constant current of 163A.
Maximum Constant Discharging Current: 163A
Maximum Pulse Discharging Current (Long Pulse): 326A
Maximum Pulse Discharging Current (Short Pulse): 489A
Charging working temperature: -5~60°C
Discharge working temperature: -20~60°C
Cautions of CALB 3.2v 163ah battery cell Operation
Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
Do not directly solder the cell or pierce it with a nail or other sharp object.
Do not turn over battery. Keep it from strike, throw, tread or bending.
Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
Discarded battery should be well disposed. Do not throw it into the fire or water.
For more CALB products please click here: CALB Battery.
